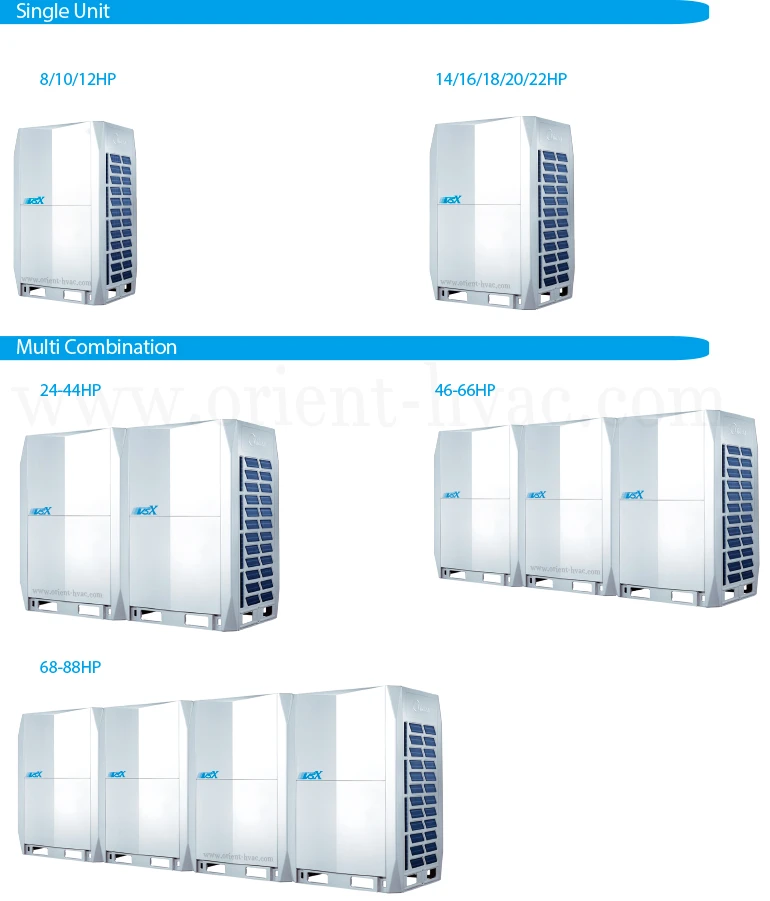

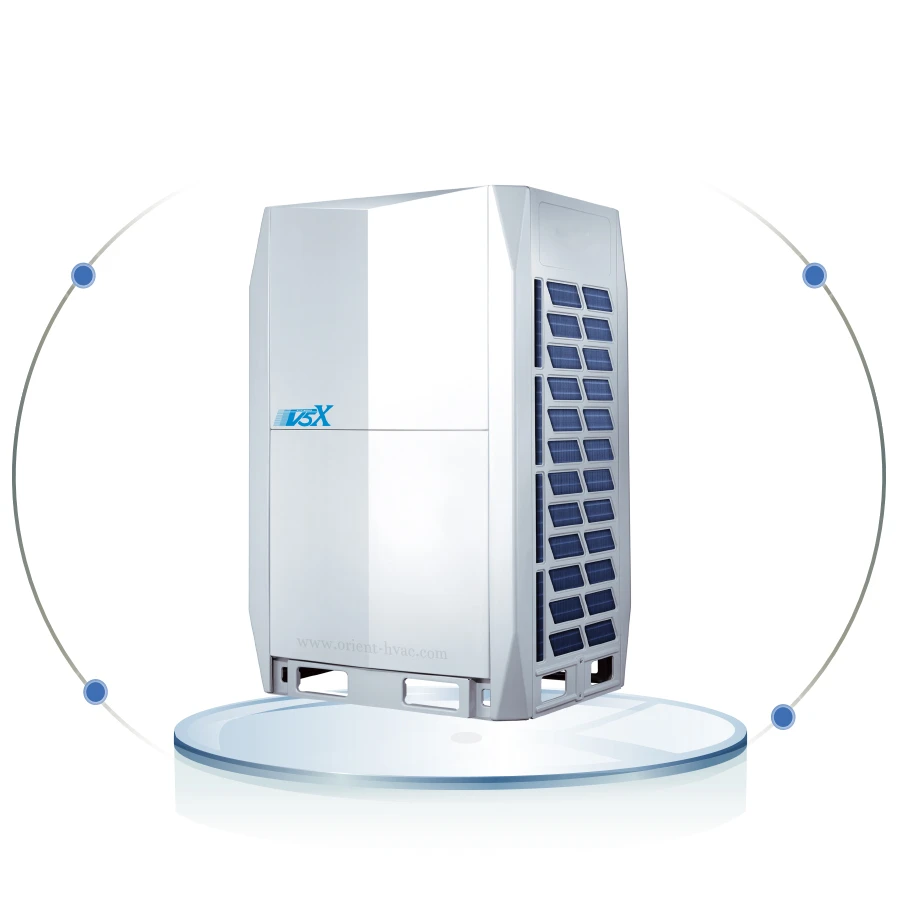

Commercial air conditioner outdoor unit V5 X SERIES VRF AC and DC 8HP,10HP,12HP,14HP,16HP,18HP,20HP,22HP

1.Description of Commercial air conditioner outdoor unit V5 X SERIES VRF AC and DC

High Efficiency

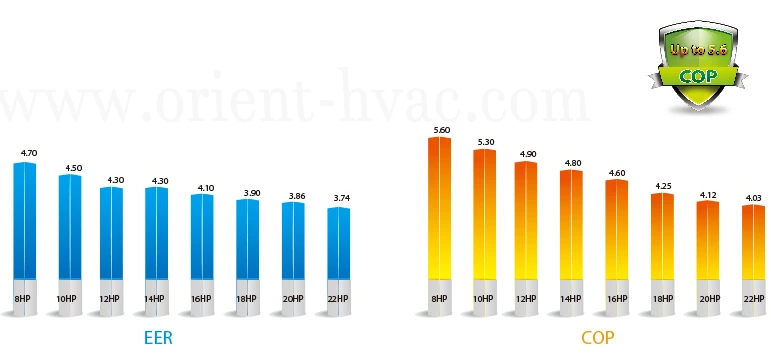

A.High EER and COP

DC compressors and fan motors together with a high-efficiency heat exchanger combine to give the V5 X Series top-class energy efficiency in cooling and heating.

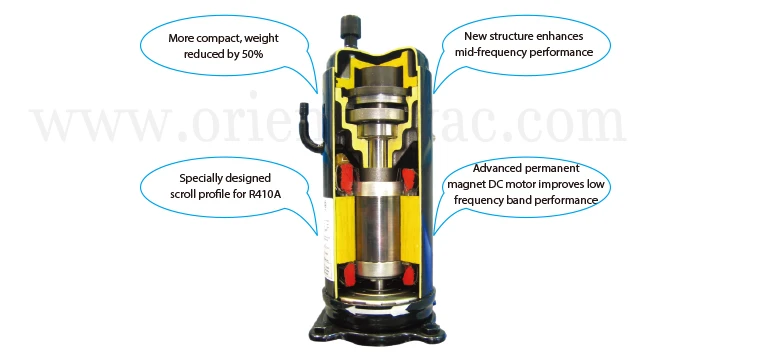

B.All DC Inverter Compressors

At the heart of the V5 X Series outdoor unit lies a world-leading DC inverter scroll compressor. The compressor's innovative design and numerous high performance features reduce power consumption by 25%.

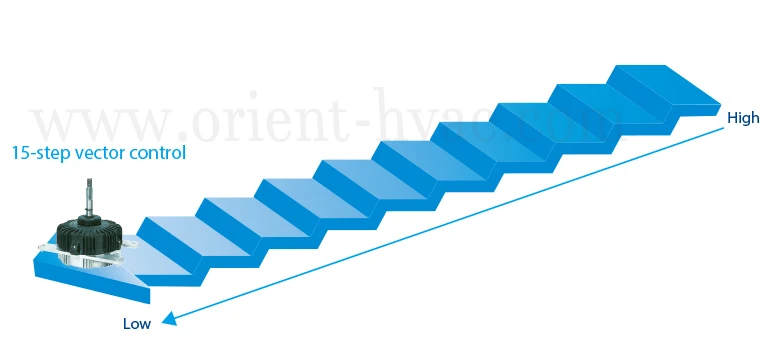

C.All DC Fan Motors

Fan speed is controlled according to the system pressure and system load, minimizing energy consumption.

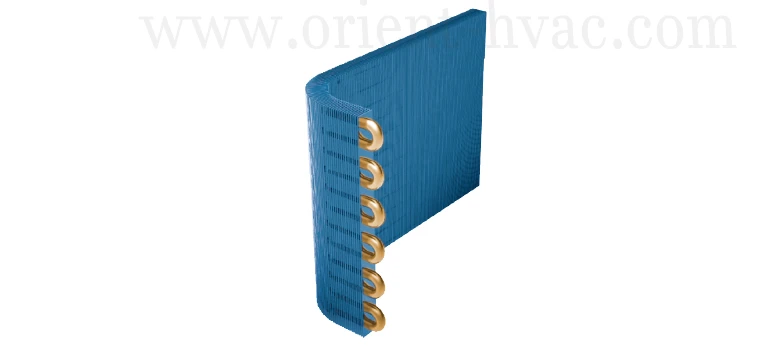

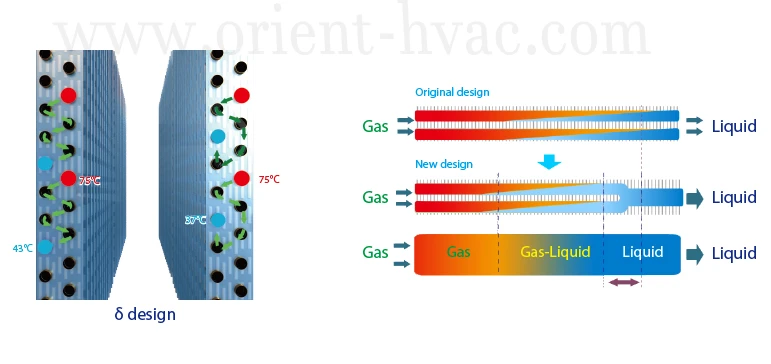

D.High Efficiency Heat Exchanger

Newly designed fins enlarge the heat exchange area and decrease air resistance, enhance heat exchange performance and save more energy.Hydrophilic fins and internally threaded copper pipes optimize heat exchange efficiency.

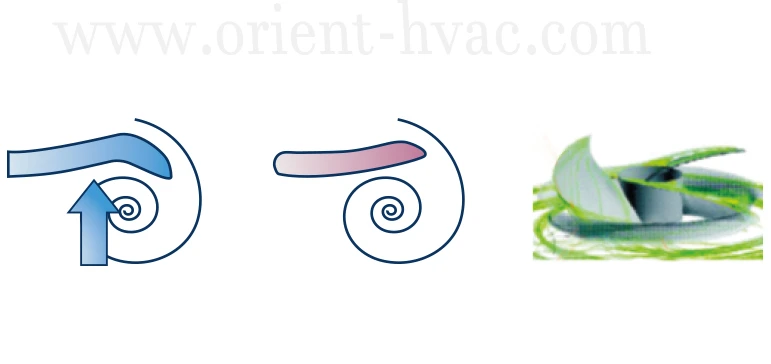

F.Newly Designed Fan

A new blade with sharp edges and a slight curve increases the airflow rate and lowers vibration and airflow resistance.

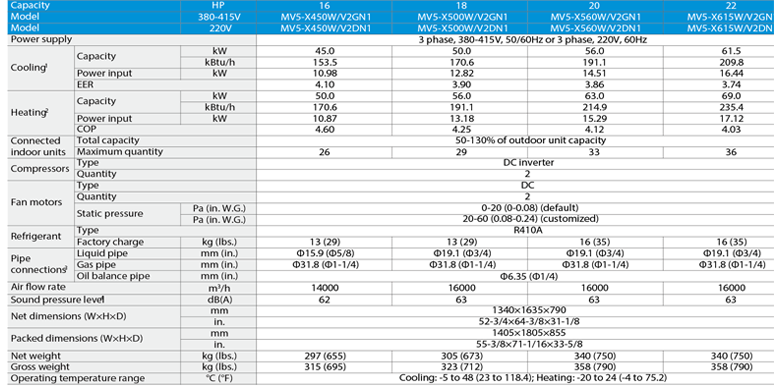

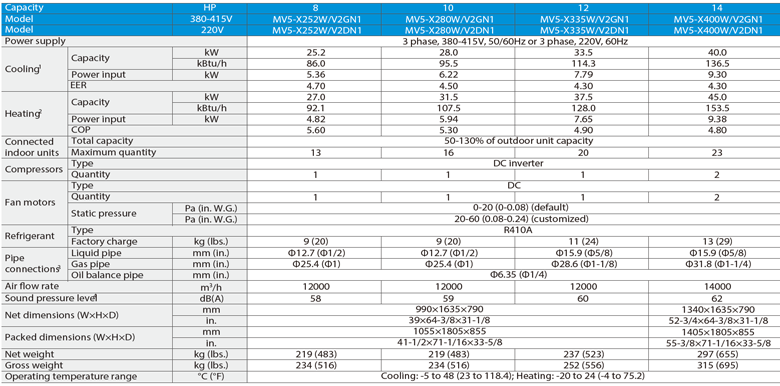

Note:Indoor temperature 27°C (80.6°F) DB, 19°C (66.2°F) WB; outdoor temperature 35°C (95.0°F) DB; equivalent refrigerant piping length 7.5m (24.6ft.) with zero level difference.
Indoor temperature 20°C (68.0°F) DB; outdoor temperature 7°C (44.6°F) DB, 6°C (42.8°F) WB; equivalent refrigerant piping length 7.5m (24.6ft.) with zero level difference.
Diameters given are those of the unit's stop valve.
Sound pressure level is measured at a position 1m (3.28ft) in front of the unit and 1.3m (4.3ft) above the floor in a semi-anechoic chamber.
